Example -- magnetics Tools for Coils
====================================
This script shows hwo to use the magnetics module
to display, fit, and feed forward 3D coil currents.
These shots where taken from J. King's 2013-23-01
experiment validating 3D Magnetics responses.
"""
# standard modules
import numpy as np
# local modules
import magnetics
############################################## Variables
il = magnetics.coil_arrays['IL']
shot = 153482 # vacuum I-Coils at 10kHz
xlim = (3e3,5e3) # coils are rotating, 2 amplitudes

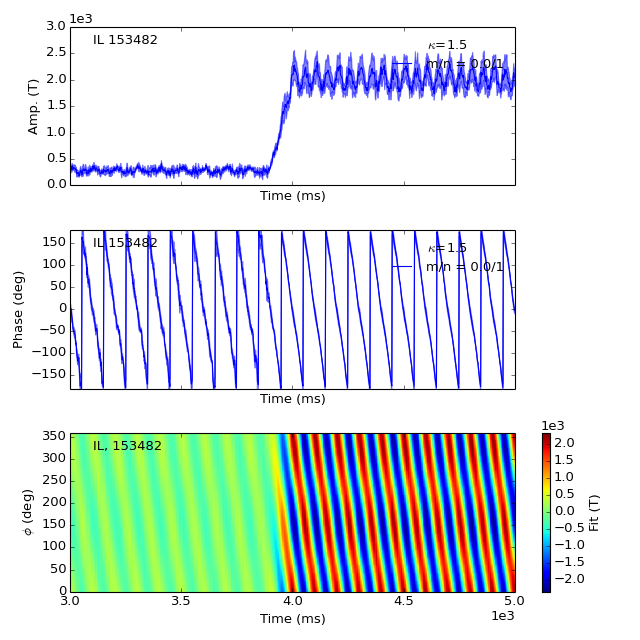

############################################## Find Amplitude and Phase of Applied Coils
il.set_data(shot)
il.fit.update(ns=[1],ms=[0],xlim=xlim)
fdata = il.fit.plot()
############################################## Feed Forward a desired mode
n,m = 1,0
time = np.linspace(xlim[0],xlim[1],2e3)
amp = 1
phase = 10*2*np.pi*(time-time.min())/1000 # 10Hz

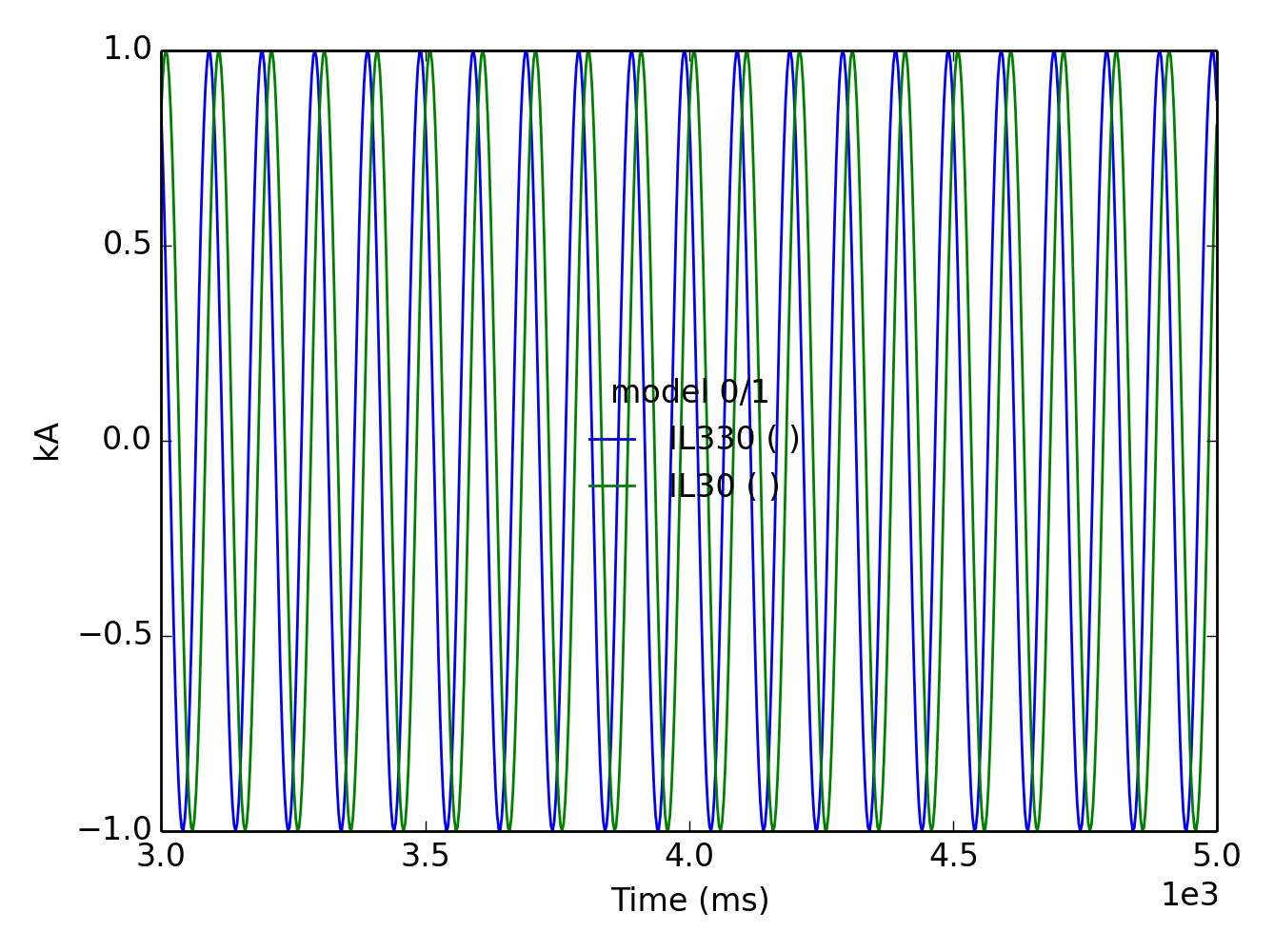

# set the mode, and plot sample coils
il.set_mode(amp,phase,n,m,time=time)
f1 = il.plotdata(search='30') # will find IL30 and IL330
f1.axes[0].set_ylabel('kA') # remind ourself these are not sensors

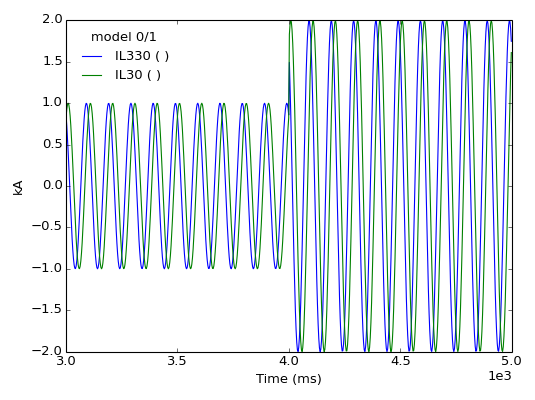

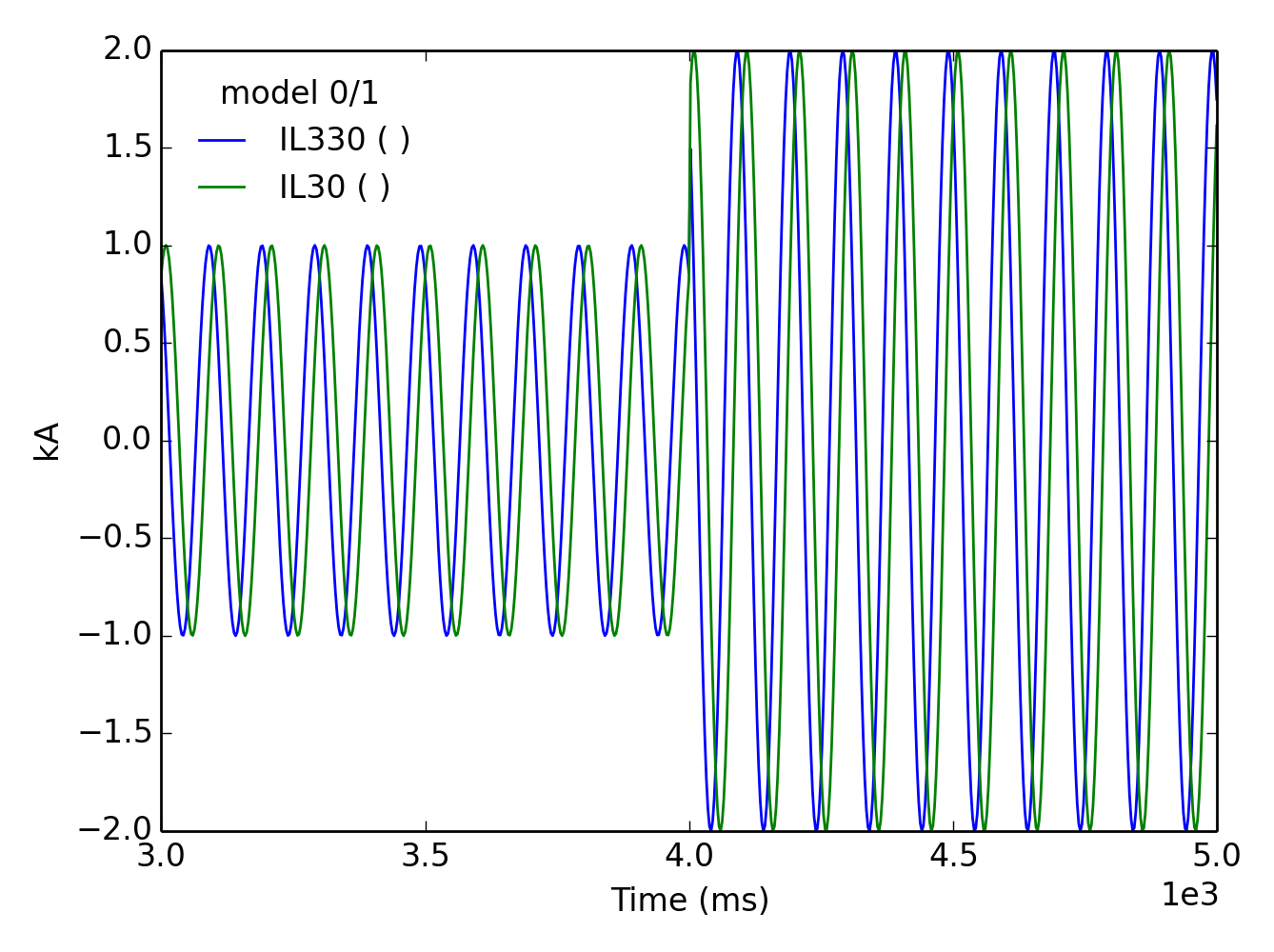

# add a jump to the amplitude and plot a sample coil
amp = np.ones_like(time)
amp[time>np.mean(xlim)]*=2
il.set_mode(amp,phase,n,m,time=time)
f2 = il.plotdata(search='30')
f2.axes[0].set_ylabel('kA')
magnetics.plt.show()
